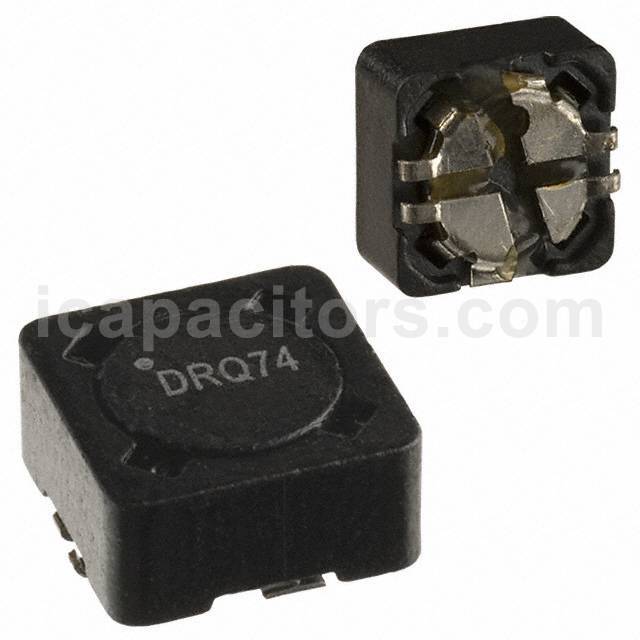

DRQ74-220-R

Part NumberDRQ74-220-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 21.73UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 86.92µH Inductance - Connected in Series 21.73µH Inductance - Connected in Parallel 92.5mOhm DC Resistance (DCR) - Parallel 1.75A Nonstandard

To learn about the specification of DRQ74-220-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ74-220-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ74-220-R.
We are offering DRQ74-220-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ74-220-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1100
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	21.73µH
Inductance - Connected In Series	86.92µH
Tolerance	±20%
Current Rating - Parallel	1.75A
Current Rating - Series	874mA
Current Saturation - Parallel	2.13A
Current Saturation - Series	1.07A
DC Resistance (DCR) - Parallel	92.5mOhm
DC Resistance (DCR) - Series	371mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.175" (4.45mm)
