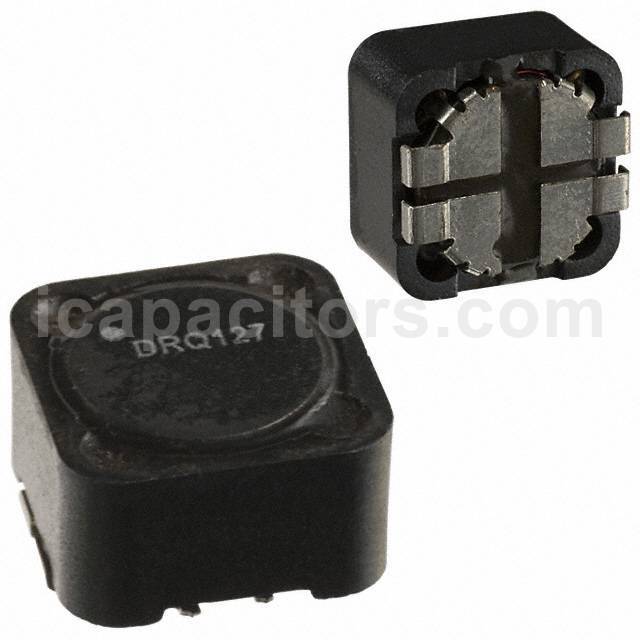

DRQ127-100-R


DRQ127-100-R

Part NumberDRQ127-100-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ127-100-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package350
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel10.47µH
Inductance - Connected In Series41.88µH
Tolerance±20%
Current Rating - Parallel6.04A
Current Rating - Series3.02A
Current Saturation - Parallel11.2A
Current Saturation - Series5.6A
DC Resistance (DCR) - Parallel17.2mOhm
DC Resistance (DCR) - Series68.6mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height0.315" (8.00mm)
