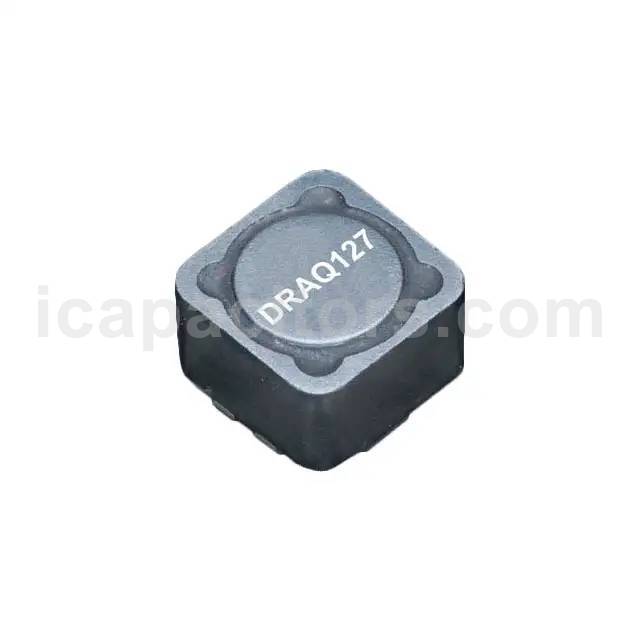

DRAQ127-100-R


DRAQ127-100-R

Part NumberDRAQ127-100-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRAQ127-100-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesDRAQ127
PackagingCut Tape (CT)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel9.63µH
Inductance - Connected In Series38.5µH
Tolerance±25%
Current Rating - Parallel6.02A
Current Rating - Series3.01A
Current Saturation - Parallel8.96A
Current Saturation - Series4.48A
DC Resistance (DCR) - Parallel22mOhm Max
DC Resistance (DCR) - Series89mOhm Max
ShieldingShielded
RatingsAEC-Q200
Operating Temperature-40°C ~ 165°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.480" L x 0.480" W (12.20mm x 12.20mm)
Height0.315" (8.00mm)
