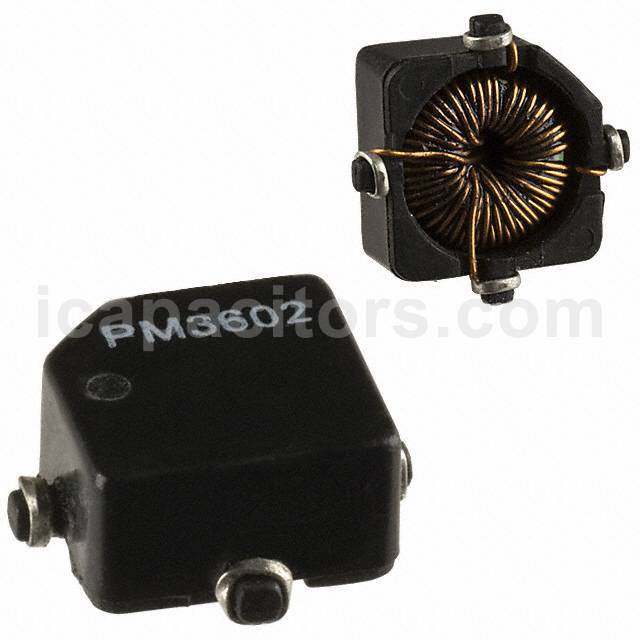

PM3602-300-RC

Part NumberPM3602-300-RC

ManufacturerBourns Inc.

DescriptionINDUCT ARRAY 2 COIL 300UH SMD

DatasheetPM3600 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300µH Inductance - Connected in Parallel 1.31Ohm Max DC Resistance (DCR) - Parallel 320mA Nonstandard

To learn about the specification of PM3602-300-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PM3602-300-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PM3602-300-RC.
We are offering PM3602-300-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PM3602-300-RC - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	PM3600 Series
Standard Package	400
Manufacturer	Bourns Inc.
Series	PM3600
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	300µH
Inductance - Connected In Series	1.2mH
Tolerance	±20%
Current Rating - Parallel	320mA
Current Rating - Series	160mA
DC Resistance (DCR) - Parallel	1.31Ohm Max
DC Resistance (DCR) - Series	5.24Ohm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.452" L x 0.354" W (11.48mm x 8.99mm)
Height	0.225" (5.72mm)
Base Part Number	PM3602
