IKB40N65ES5ATMA1
IKB40N65ES5ATMA1

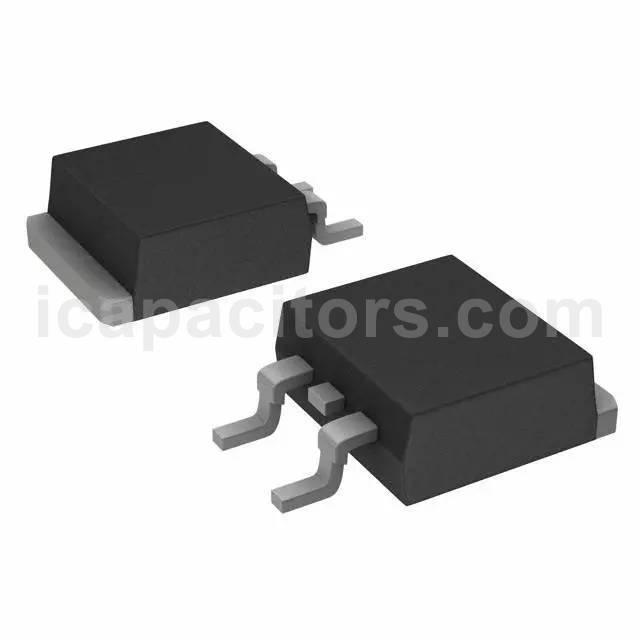

Part Number IKB40N65ES5ATMA1 Description 40A 650V TRENCHSTOP5 MEDIUM SPEE Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263ABUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 650V 79A 230W Surface Mount PG-TO263-3
To learn about the specification of IKB40N65ES5ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKB40N65ES5ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKB40N65ES5ATMA1.
We are offering IKB40N65ES5ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKB40N65ES5ATMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKB40N65ES5 Standard Package 1 Manufacturer Infineon Technologies Series TrenchStop™ 5 Packaging Cut Tape (CT) Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 79A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 1.74V @ 15V, 40A Power - Max 230W Switching Energy 860µJ (on), 400µJ (off) Input Type Standard Gate Charge 95nC Td (on/off) @ 25°C 19ns/130ns Test Condition 400V, 40A, 10Ohm, 15V Reverse Recovery Time (trr) 73ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Surface Mount Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Supplier Device Package PG-TO263-3
