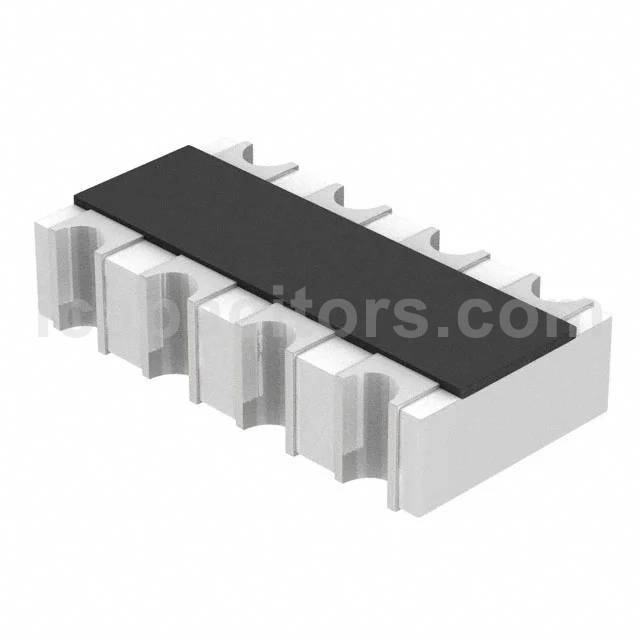

EXB-N8V103JX


EXB-N8V103JX

Part NumberEXB-N8V103JX

Manufacturer

Description

Datasheet

Package / Case0804, Concave, Long Side Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

EXB-N8V103JX - Product Attributes

Categories Resistors / Resistor Networks, Arrays
Datasheet
Standard Package1
ManufacturerPanasonic Electronic Components
SeriesEXB
PackagingCut Tape (CT)
Part StatusActive
Circuit TypeIsolated
Resistance (Ohms)10k
Tolerance±5%
Number of Resistors4
Resistor Matching Ratio-
Resistor-Ratio-Drift-
Number of Pins8
Power Per Element31mW
Temperature Coefficient±200ppm/°C
Operating Temperature-55°C ~ 125°C
Applications-
Mounting TypeSurface Mount
Package / Case0804, Concave, Long Side Terminals
Supplier Device Package0804
Size / Dimension0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max)0.022" (0.55mm)
