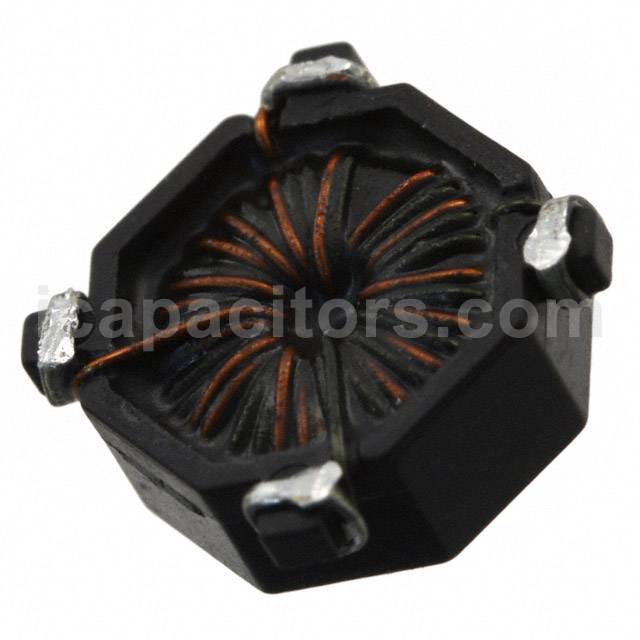

CTX10-1-R


CTX10-1-R

Part NumberCTX10-1-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX10-1-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1100
ManufacturerEaton - Electronics Division
SeriesOCTA-PAC®
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel10µH
Inductance - Connected In Series40µH
Tolerance±20%
Current Rating - Parallel1.9A
Current Rating - Series950mA
DC Resistance (DCR) - Parallel44mOhm Max
DC Resistance (DCR) - Series176mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.165" (4.19mm)
