C3M0280090J-TR
C3M0280090J-TR
Part Number C3M0280090J-TR
Description MOSFET N-CH 900V 11A

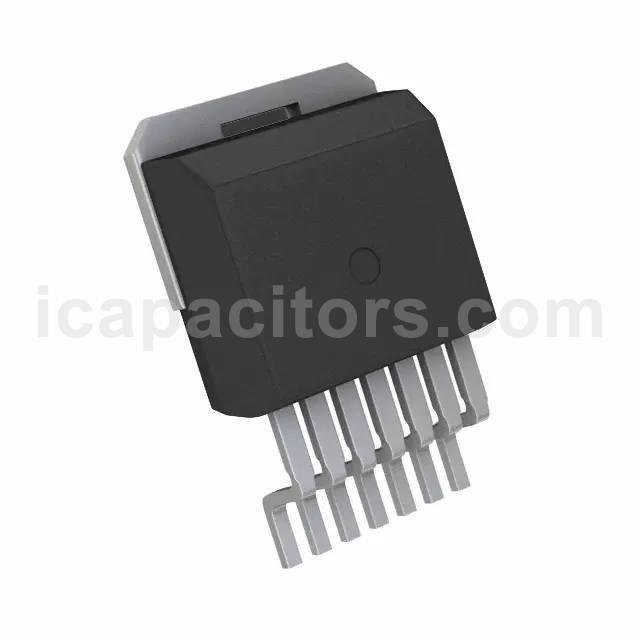

Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 900V 11A (Tc) 50W (Tc) Surface Mount D2PAK-7
To learn about the specification of C3M0280090J-TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C3M0280090J-TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C3M0280090J-TR.
We are offering C3M0280090J-TR for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C3M0280090J-TR - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet C3M0280090J
Standard Package 800
Manufacturer Cree/Wolfspeed
Series C3M™
Packaging Tape & Reel (TR)
Part Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 900V
Current - Continuous Drain (Id) @ 25°C 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Rds On (Max) @ Id, Vgs 360mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs 9.5nC @ 15V
Vgs (Max) +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds 150pF @ 600V
FET Feature -
Power Dissipation (Max) 50W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package D2PAK-7
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
