AOD5B65M1
AOD5B65M1

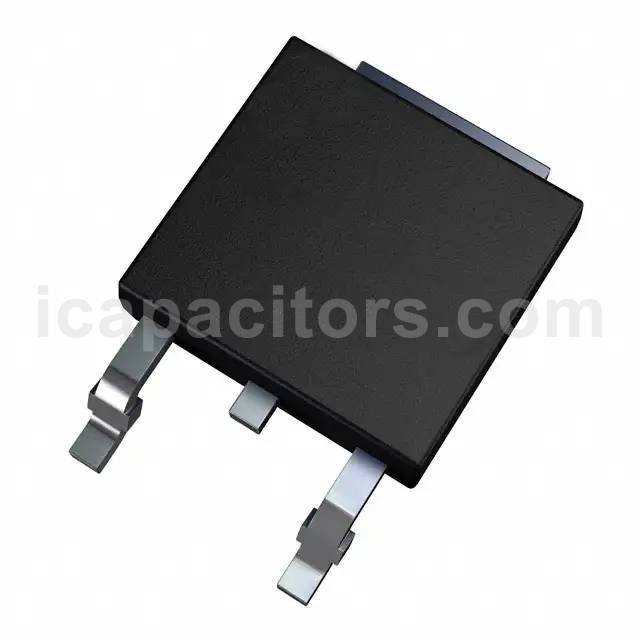

Part Number AOD5B65M1 Description IGBT 650V 5A TO252 Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 650V 10A 69W Surface Mount TO-252
To learn about the specification of AOD5B65M1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOD5B65M1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOD5B65M1.
We are offering AOD5B65M1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
AOD5B65M1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet AOD5B65M1 Standard Package 1 Manufacturer Alpha & Omega Semiconductor Inc. Series Alpha IGBT™ Packaging Cut Tape (CT) Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 10A Current - Collector Pulsed (Icm) 15A Vce(on) (Max) @ Vge, Ic 1.98V @ 15V, 5A Power - Max 69W Switching Energy 80µJ (on), 70µJ (off) Input Type Standard Gate Charge 14nC Td (on/off) @ 25°C 8.5ns/106ns Test Condition 400V, 5A, 60Ohm, 15V Reverse Recovery Time (trr) 195ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 Supplier Device Package TO-252
