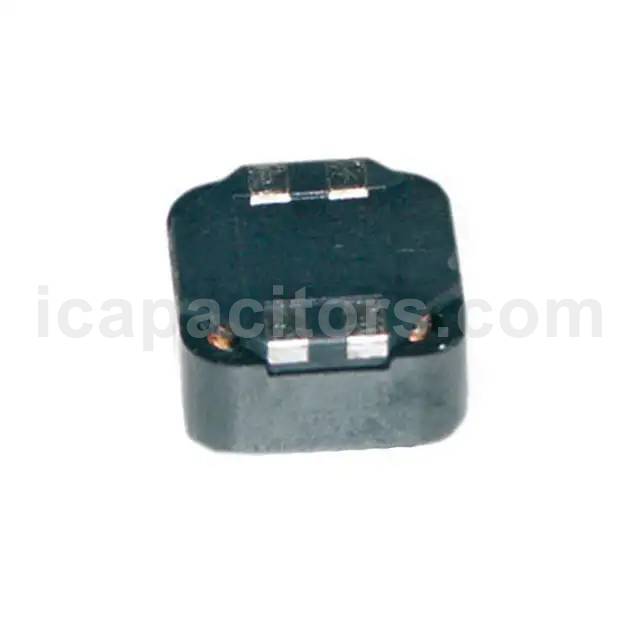

744877220

Part Number744877220

ManufacturerWurth Electronics Inc.

DescriptionINDUCT ARRAY 2 COIL 22UH SMD

Datasheet744877220

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 88µH Inductance - Connected in Series 22µH Inductance - Connected in Parallel 260mOhm Max DC Resistance (DCR) - Parallel 800mA Nonstandard

To learn about the specification of 744877220, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744877220 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744877220.
We are offering 744877220 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744877220 - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	744877220
Standard Package	1000
Manufacturer	Wurth Electronics Inc.
Series	WE-DD
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	22µH
Inductance - Connected In Series	88µH
Tolerance	±20%
Current Rating - Parallel	800mA
Current Rating - Series	400mA
Current Saturation - Parallel	1.8A
Current Saturation - Series	900mA
DC Resistance (DCR) - Parallel	260mOhm Max
DC Resistance (DCR) - Series	-
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height	0.189" (4.80mm)
