5500R-566K
5500R-566K

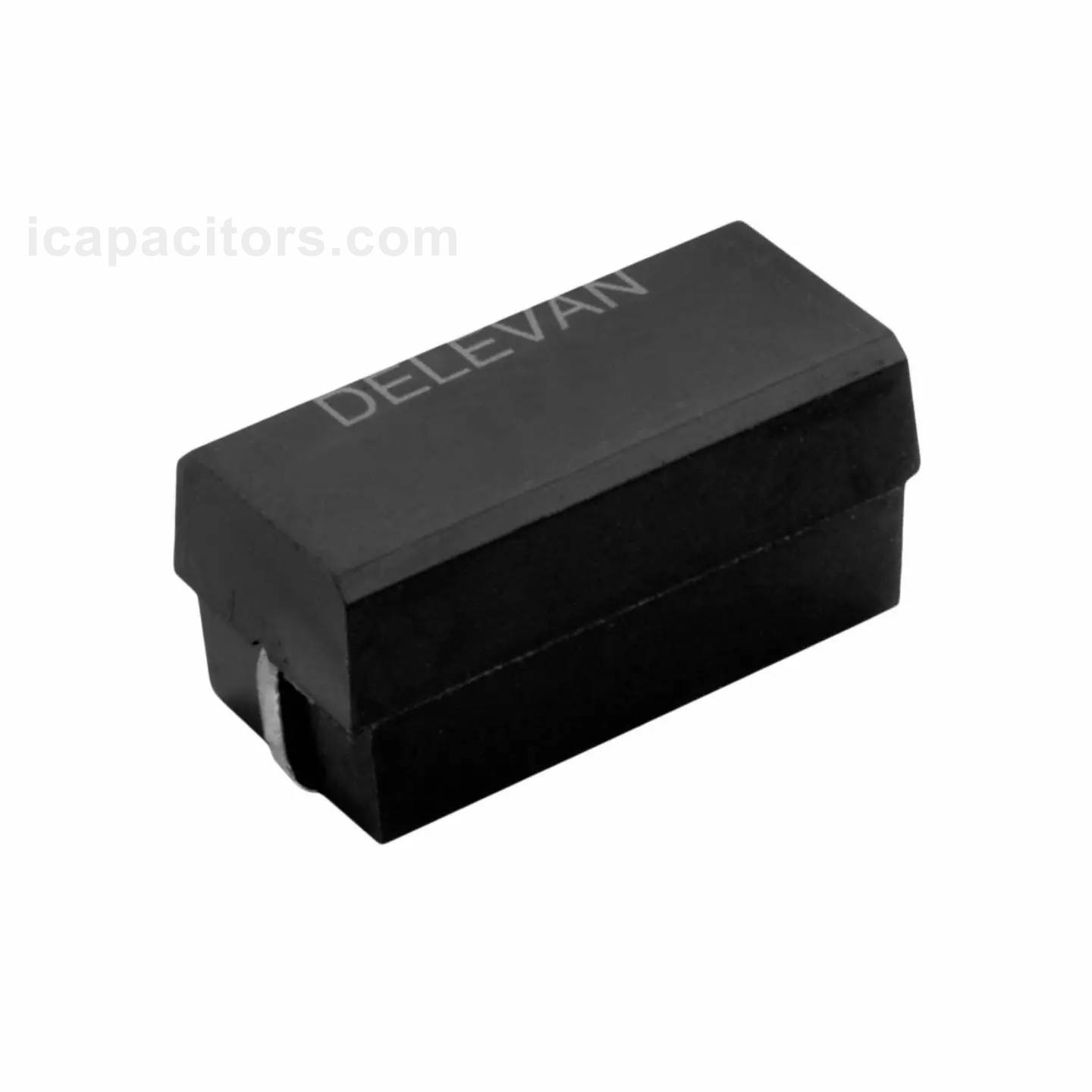

Part Number 5500R-566K Description FIXED IND 56MH 160MA 38 OHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 56mH Unshielded Inductor 160mA 38Ohm Max Nonstandard
To learn about the specification of 5500R-566K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 5500R-566K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 5500R-566K.
We are offering 5500R-566K for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
5500R-566K - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 5500(R) Series Datasheet Standard Package 1 Manufacturer API Delevan Inc. Series 5500R Packaging Cut Tape (CT) Part Status Active Type - Material - Core Ferrite Inductance 56mH Tolerance ±10% Current Rating (Amps) 160mA Current - Saturation 70mA Shielding Unshielded DC Resistance (DCR) 38Ohm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -55°C ~ 130°C Inductance Frequency - Test 1kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 1.050" L x 0.495" W (26.67mm x 12.57mm) Height - Seated (Max) 0.520" (13.21mm)
